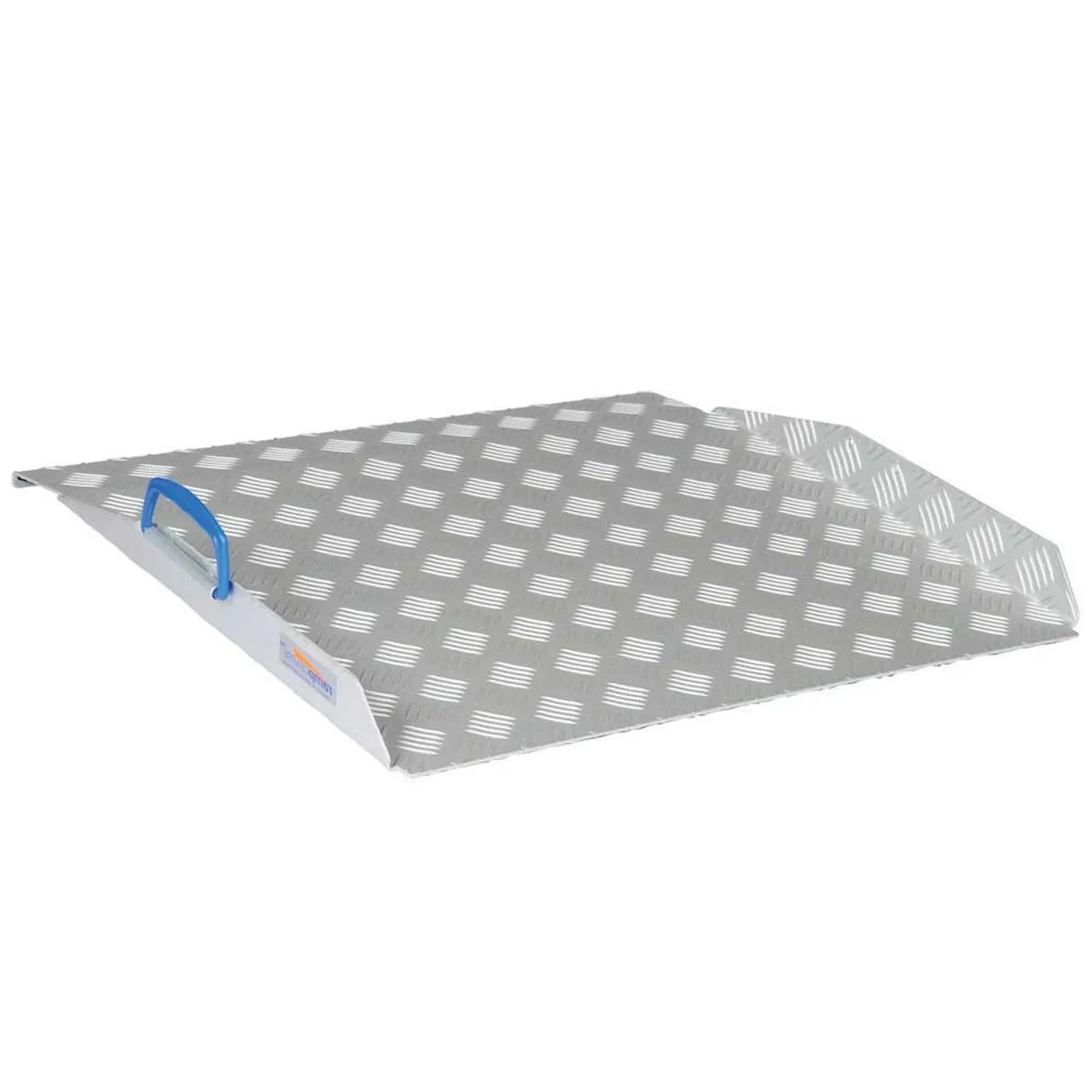

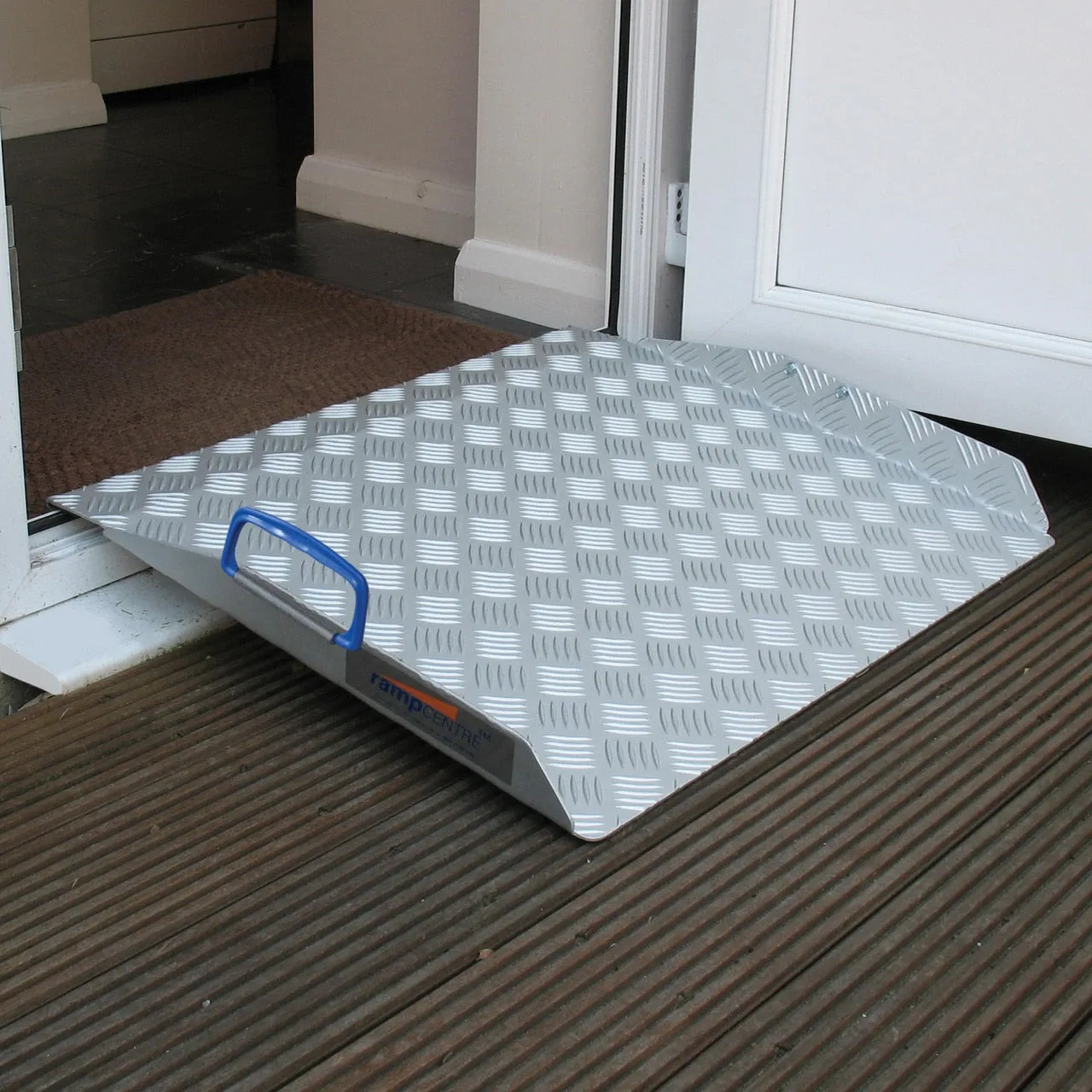

This unique ramp rests securely on the threshold whilst spreading the weight and creating a strong edge nosing for any Aerolight ramp needed for access from the outside. The result is a comfortable route all the way to the inside of the property. PVC door threshold problems can easily be beaten with the innovative Doorline-multi.
Finding The Correct Gradient
| 1:6 (10˚) | Acceptable in some cases for assisted access and powered wheelchairs | |
| 1:8 (8˚) | A good balance between gradient and space use, suited for events etc. | |
| 1:12 (5˚) | Often required by social services/local authorities. Minimum required Building Regs Doc M for installed ramps. | |
| 1:15 (4˚) | Sometimes required by social services/local authorities for independent access. |
Unique lip design with rubber anti-slip to safely eliminate threshold damage
Designed for use with our Aerolight and Ultralight ramps to easily bridge any threshold.
Anodised finish for many years of service
Extremely lightweight for quick and easy use, with full 300kg capacity
Comfortable, fold-away, rattle-free handle
Doorline Multi Size Guide
| Code | Max Recom. Height | Total Length | Width | Capacity kg (st) | Weight kg (lbs) |
|---|---|---|---|---|---|
| DM5 | 10cm (3.9ins) | 57.5cm (23ins) | 70cm (28ins) | 300 (47) | 3.8 (8.4) |
| DM7 | 13cm (5.1ins) | 74cm (29ins) | 70cm (28ins) | 300 (47) | 6.8 (15) |
